User guideI. Getting started

Arrange panels and views

Build the analysis canvas from panels: add as many as you need, arrange and resize them, or move one to a separate window.

Where to find it

  • Analysis → + (Add panel) at the right end of the context bar
  • Open views (layers icon) to its left

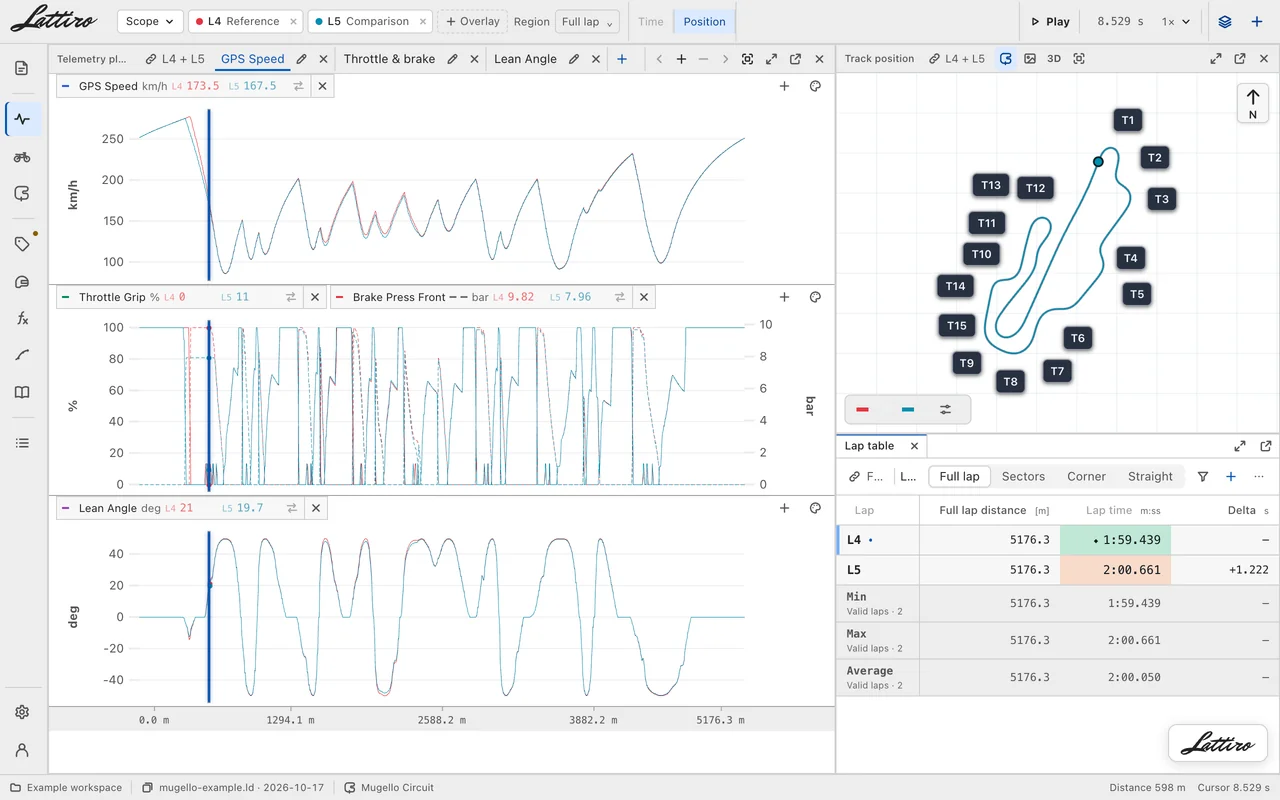

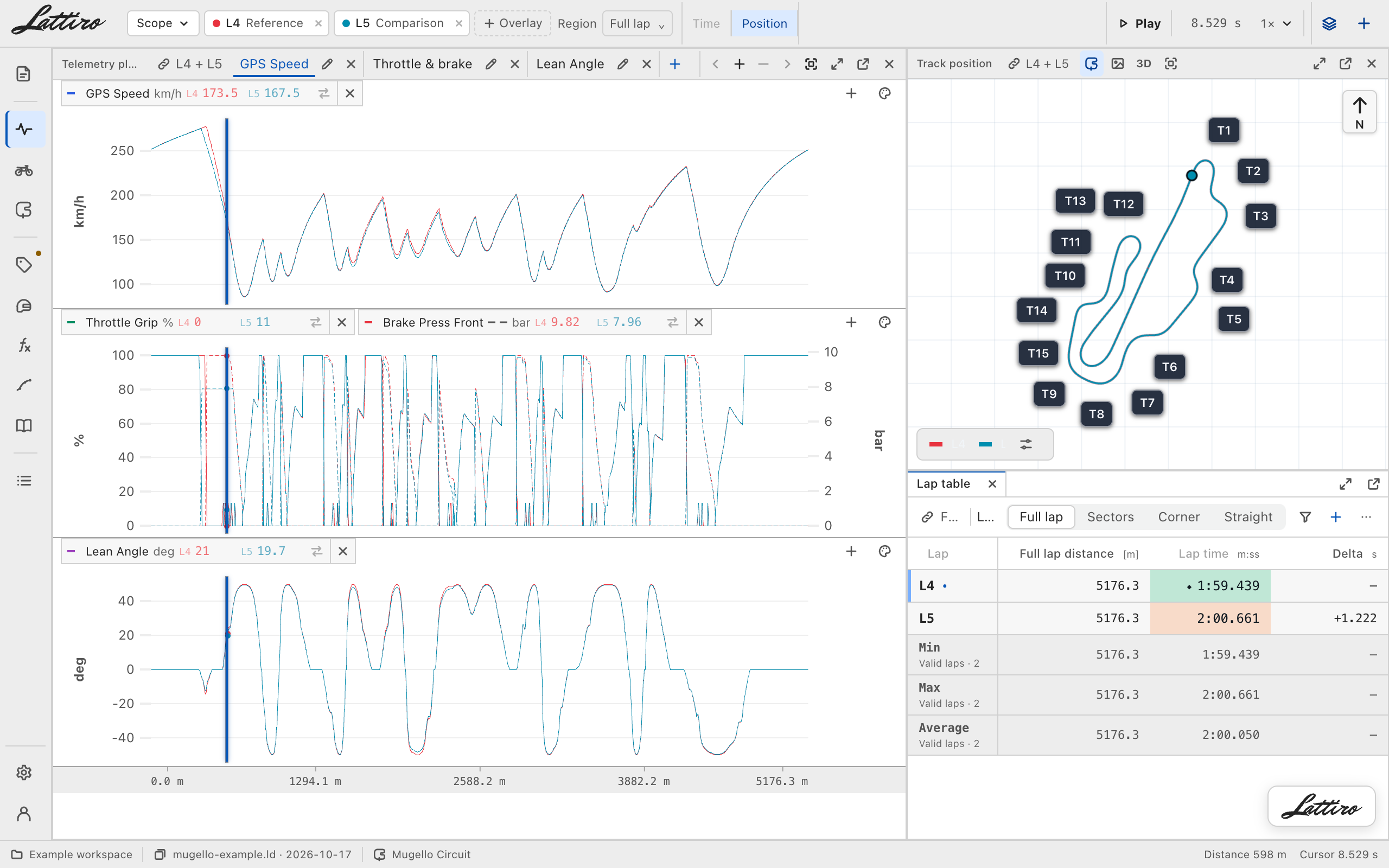

Telemetry plots, track map and lap table in one workspace
Telemetry plots, track map and lap table in one workspace

Steps

  1. Add a panel

    Click + (Add panel) at the right end of the context bar and choose a panel. You can add the same type more than once.

  2. Arrange the canvas

    Drag a panel by its header to move it, and drag its edges to resize it. Maximize panel fills the canvas; Restore panel puts it back.

  3. Use more screens

    Click Open in a separate window (multiple displays) in the panel header to move the panel to its own window.

  4. Rename, duplicate or close

    Right-click a panel for Rename, Duplicate component, Properties and Close; telemetry plots and track maps also offer Marks…. After closing, a Closed notice with Undo stays for about 10 seconds.

  5. Find open panels

    Open views (the layers icon left of +) lists every panel on the canvas and in separate windows. Pick one to bring it forward.

  6. Fix a panel's range

    Right-click a panel and choose Pin analysis range to keep its current range; Follow global selection links it again. See Analysis range and panel ranges.

Good to know

  • Panel types

    Telemetry plots, Track map, Live instruments; Lap table, Channel comparison & statistics, Histogram, Relationship plot, Spectrum, Bit field, Interval details; and Lattiro Assistant, which is Beta (invite only).

  • Navigation

    The navigation sits on the left by default: File; Analysis, Vehicle and Track (⌘/Ctrl+1–3); Record info, Rider information, Calculations, Marks and Knowledge vaults; Channel management; the gear and your account at the bottom. Settings → Interface → Navigation position moves it to the top, and Show names beside icons adds labels.

  • Layout template

    Open views → Layout templates → Analysis overview puts a lap table and map above telemetry, and a Lattiro Assistant panel on the right, which is Beta (invite only). Existing panels keep their channels and settings; the template applies only when you choose it.

  • Closing is not deleting

    Closing a panel removes only its display. Recorded data, channels and formulas stay, and you can close the last panel for a blank canvas.

  • Separate windows

    A popped-out panel stays in sync with the workspace. Separate windows have no right-click menu, and the keyboard cursor keys do not work there yet.
