Histograms and interval statistics

Steps

1. 1

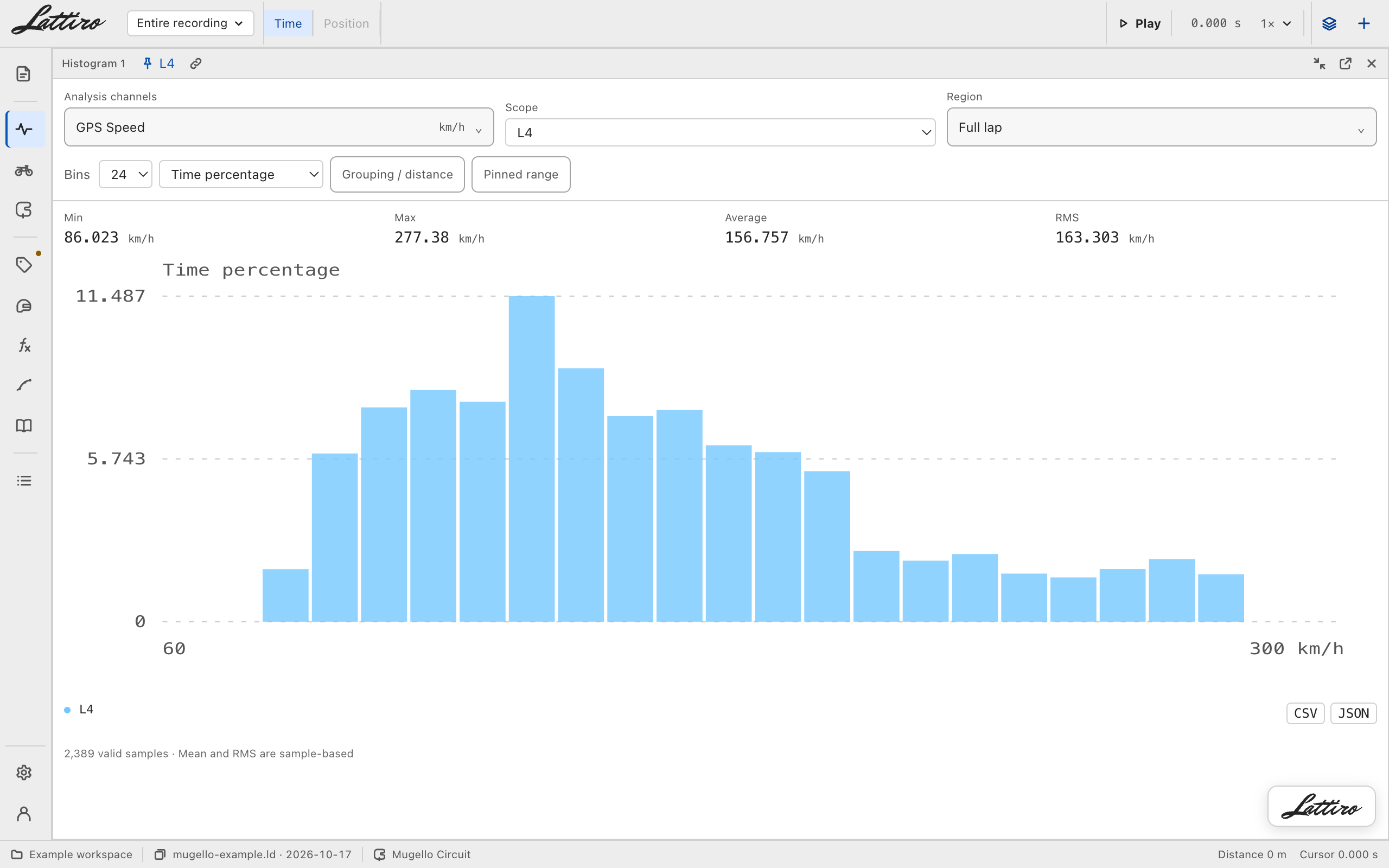

   Set up a histogram

   Add a Histogram and choose Analysis channels, plus a Condition if you have saved ones. Under Scope pick Entire recording, Current selection, Compare laps or a lap; with a lap chosen you can also pick a Region.

2. 2

   Shape the bins

   Choose Bins (8–64, default 24) and the y axis: Sample percentage, Sample count, Time percentage, Time · s, Distance · m or Distance percentage. Automatic range can be replaced by a fixed Minimum and Maximum.

3. 3

   Group the data

   Grouping / distance groups By channel range (2–9 increasing boundaries) or By math condition, and sets the Speed for distance used by the distance views.

4. 4

   Compare channels at the cursor

   Add Channel comparison & statistics and click Choose channels… to tick 1–32 Analysis channels. Channel comparison lists each value at the cursor, per lap with Lap / Δ in a comparison; Source details adds status, adjacent samples and quality.

5. 5

   Statistics between two cursors

   Shift-click a telemetry curve to set the second cursor. Interval statistics shows valid rows, Min, Max, Mean, Population SD and P5, P50 and P95 for each channel between the cursors.

6. 6

   List every occurrence

   Add Interval details and choose the channel to measure, a saved Condition and the Scope. Each row is one interval with Start · s, Duration · s, Peak, Average, RMS and Coverage; click a start time or peak to move the cursor there.
